GEMMA
Mini spotlight emergency lighting recessed
Mini spotlight emergency lighting recessed dal design ultrasottile, ideale per installazioni residenziali.
È disponibile con tre differenti ottiche studiate per illuminare aree, vie di esodo e per installazione a parete.
Product line |
GEMMA |
Product type |
Emergency lighting device |
Version |
Standard |
Type |
Non-Maintained |
Installation |
Wall / False ceiling |
Power Supply |
220 / 230Vac, 50/60 Hz |
Battery |
LiFePO4 3,2V |
Insulation class |
II |
Color |
White |
Light source |
LED |
Tempering color |
4000K |
IP Grade |
IP20 |
Ik Grade |
IK07 |
Operating temperature |
from 0 ° to 50 ° C |
Compliant to standards |
EN 60598-1, EN 60598-2-2, EN 60598-2-22 |
EN 55015, EN 61547 | |

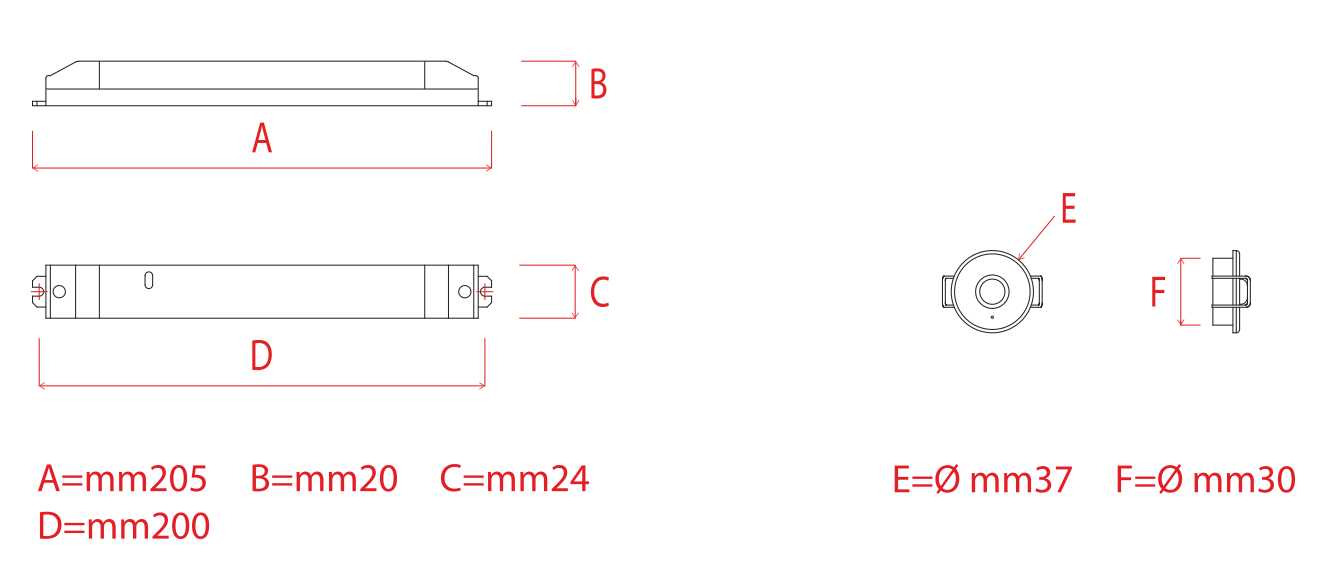

Diameter |
37 |
| P/N | Product Name | Lens Type | Consumption Max [W] | Duration | Battery Life LiFePO4 3,2V [Ah] | Maintained (M) - NON Maintained (N/M) |
AVERAGE FLOW IF [lm] | IP Grade | recharge | |
| Standard | HPGM SE0A0320-B | GEMMA - A | open area | 1,5 | 3 h | 1,5 | N/M | 150 | IP20 | 12 h |
| HPGM SE0C0320-B | GEMMA - C | exodus way | 1,5 | 3 h | 1,5 | N/M | 150 | IP20 | 12 h | |
| HPGM SE0M0320-B | GEMMA - M | wall installation | 1,5 | 3 h | 1,5 | N/M | 150 | IP20 | 12 h |
Manuals - GEMMA (File ZIP - 522 Kb)
Technical sheet - GEMMA (File PDF - 458 Kb)
